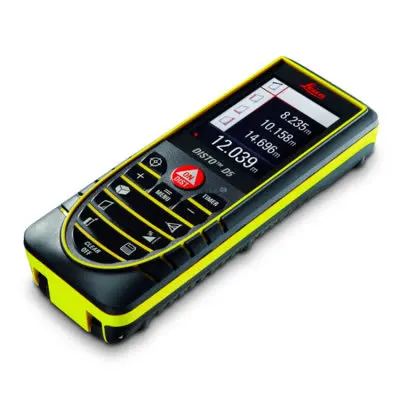

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Super Deals Disto D5 distance meter or laser rangfinder. Price at this time US $495.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in China good product - hard service Trusted Seller Store!
Features | Your advantages |
Measuring range 1.6in – 325 ft | Precise, quick and reliable measurements |
BLUETOOTH® | Error-free and quick data transfer to Pocket PC or PC |
“Leica DISTO™ Transfer” software is included | Easy transfer for further processing in Excel®, Word®, AutoCAD® or other Windows-based programs |
AutoCAD® plug-In | Convenient drawing using your AutoCAD® software |
Smart Horizontal Mode™ | Determine precise horizontal distances at the press of a key |
Tilt sensor | Measure angles up to ± 45° at the touch of a button |
Flip-out end-piece | Reliable, trouble-free and error-free measurement from edges |
Pythagoras functions | Indirect height and width measurements in inaccessible positions |
Room dimensions | Values such as total wall length, wall and ceiling area are available at the touch of a button |
Stake out function | Stake out equal or two different recurring distances |
Triangle function | Determine the area of a many-cornered room efficiently |
How many zoom levels does the DISTO™ D5 have?
The integrated digital Pointfinder in the device has 1x, 2x and 4x zoom. You can see on the left up corner which zoom level you have selected. To change from one zoom level to the next one you have to press the “Digital Pointfinder” key .
Can the brightness in the digital Pointfinder be adjusted?
Yes, on the screen of the digital Pointfinder on top of the crosshair you see a symbol existing of a “Sun” and a “+” and “-“. By pressing the “Plus” and “Minus” key you are able to adjust the brightness in 5 steps.
Why is the laser dot on distance on short distances not centered in the crosshair?
It is the parallax effect due to the distance between the laser window and the digital pointfinder optics. This effect occurs only when the digital pointfinder is used on targets below 10m.
In this case the laser dot appears displaced in reference to the crosshair. This is not an error !!
For distances below 10m please rely on the real laser dot.
How accurate is the tilt sensor in the DISTO™ D5?
The accuracy of the tilt sensor in the device is ±0.3° to the laser beam respectively ±0.3° to the housing of the device.
What units of tilts are integrated into the DISTO™ D5?
You can set the DISTO™ D5 to use different tilt units. Select in the menu the submenu “Units” and choose between ° , %, in/ft and mm/m.
-> The level function in the right hand top corner of the display can also be switched on/off in the submenu “level”. It is always set to 0.0° and can not be changed into a different unit for tilts.
What is the angular range of the tilt sensor in the DISTO™ D5?
The integrated tilt sensor in the Leica DISTO™ D5 functions in the range ±45° and at a transverse tilt of < ±10°. If the tilt is in the range > ±50° an info code “i160” appears in the display, which means that the device is being used outside its permissible range.
If the device is held at > ±10° transversely, the info code “i156” appears in the display and indicates that the device is tilted too much.
What has to be considered in the Trapezoid Function 2?
The inclination sensor in the Leica DISTO™ D5 is limited to ±45°. So the second measurement can only be done if the angle is < ±45°. ,If the angle is > ±50° you will get the info code “i160”.
Can the tilt sensor of a DISTO™ D5 be calibrated by the user?
You can recalibrate the zero level of the integrated tilt sensor. In the menu there is a special point for this calibration. If you enter this submenu you will be guided through the process.
Please now proceed the following:
Put the device on a nearly horizontal flat surface (e.g.table)
1. Carry out the first measurement by pressing “ON/DIST” key on a level surface. The device confirms the measurement.
2. Rotate the device horizontally 180°.
3. Press the “=/Menu” key to confirm that the device was rotated 180°.
4. Press the “ON/DIST” key and take the second measurement. The device confirms the measurement.
-> The zero level of the tilt sensor is now calibrated
What is the angular range of the tilt sensor in the DISTO™ D5?
The integrated tilt sensor in the DISTO™ D5 functions in the range ±45° and at a transverse tilt of < ±10°. If the tilt is in the range > ±50° an info code “i160” appears in the display, which means that the device is being used outside its permissible range.
If the device is held at > ±10° transversely, the info code “i156” appears in the display and indicates that the device is tilted too much.
What has to be considered in the Trapezoid Function 2?
The inclination sensor in the DISTO™ D5 is limited to ±45°. So the second measurement can only be done if the angle is < ±45°. ,If the angle is > ±50° you will get the info code “i160”.
Can the tilt sensor of a DISTO™ D5 be calibrated by the user?
You can recalibrate the zero level of the integrated tilt sensor. In the menu there is a special point for this calibration. If you enter this submenu you will be guided through the process.
Please now proceed the following:
Put the device on a nearly horizontal flat surface (e.g.table)
1. Carry out the first measurement by pressing “ON/DIST” key on a level surface. The device confirms the measurement.
2. Rotate the device horizontally 180°.
3. Press the “=/Menu” key to confirm that the device was rotated 180°.
4. Press the “ON/DIST” key and take the second measurement. The device confirms the measurement.
-> The zero level of the tilt sensor is now calibrated
Is it possible to obtain detailed information about the measurements taken?
Yes, it is possible to obtain detailed information in the DISTO™ D5 about the measurements of areas, volumes, Pythagorean and trapezoid functions. After the measurements have been taken, keep the relevant function key pressed.
A small red triangle on the bottom left hand of the display is showing that there are 2nd Results available.
What accessories are recommended for the DISTO™ D5?
Leica Tripod TRI100
For long distances we recommend using a tripod, even indoors. A tripod provides additional steadiness and therefore allows accurate targeting, especially over long distances. We particularly recommend the Leica TRI100 tripod.
Target Plate
For measurement especially outdoors and in very bright conditions it is very helpful to use a target plate. We offer different versions in our accessory range.
Can the DISTO™ D5 also be used to measure horizontal angles?
No, the integrated tilt sensor can only measures vertical angles. If the device is held at a transverse tilt angle greater than ±10° the display shows an info code “i156”, which means that the device is required to be held level (transversely).
What is the measuring accuracy when using the direct horizontal measuring function?
For example, if a distance of 10m is measured at an angle of 10°, the error on uncertainty on measurement on the direct horizontal distance (fd) is 9mm.
If a distance of 10m is measured at an angle of 45°, the uncertainty of measurement on the direct horizontal distance (fd) is 37mm.
| Features | Your advantages |
| Measuring range 1.6in – 325 ft Typ. accuracy ± 1/16 in | Precise, quick and reliable measurements |
| BLUETOOTH® | Error-free and quick data transfer to Pocket PC or PC |
| “Leica DISTO™ Transfer” software is included | Easy transfer for further processing in Excel®, Word®, AutoCAD® or other Windows-based programs |
| AutoCAD® plug-In | Convenient drawing using your AutoCAD® software |
| Smart Horizontal Mode™ | Determine precise horizontal distances at the press of a key |
| Tilt sensor | Measure angles up to ± 45° at the touch of a button |
| Flip-out end-piece with automatic detection | Reliable, trouble-free and error-free measurement from edges or out of corners |
| Pythagoras functions | Indirect height and width measurements in inaccessible positions |
| Room dimensions | Values such as total wall length, wall and ceiling area are available at the touch of a button |
| Stake out function | Stake out equal or two different recurring distances |
| Triangle function | Determine the area of a many-cornered room efficiently |
