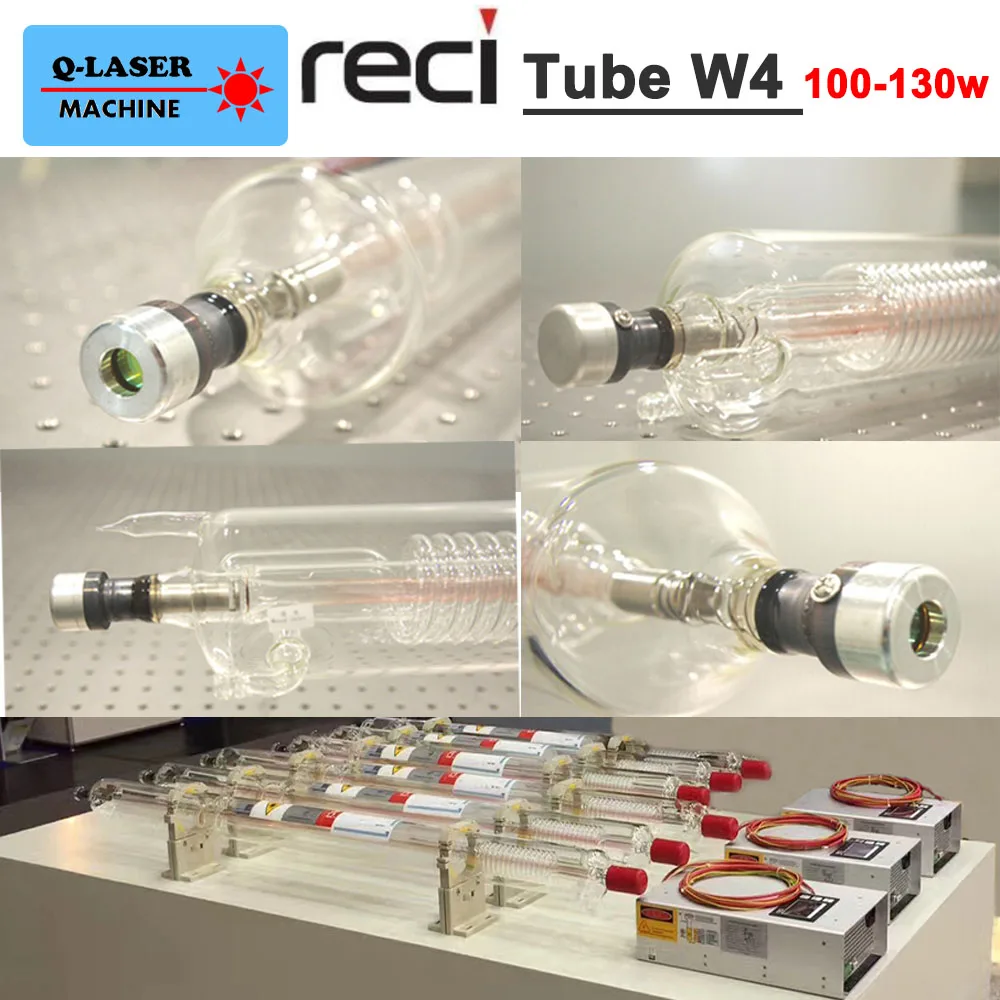

Big Stock Sale Reci W4 S4 Z4 100W Max.130W CO2 Laser Tube Wooden Case Box Packing Length 1400 Dia. 80mm for CO2 Laser Engraving Cutting Machine

Big Stock Sale Reci W4 S4 Z4 100W Max.130W CO2 Laser Tube Wooden Case Box Packing Length 1400 Dia. 80mm for CO2 Laser Engraving Cutting Machine lamachine Rating: 3.8 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Stock Sale Reci W4 S4 Z4 100W Max.130W CO2 Laser Tube Wooden Case Box Packing Length 1400 Dia. 80mm for CO2 Laser Engraving Cutting Machine. Get Discount Now! Only US $584.25/piece at this time. Hurry buy Now before back to normal price! Normal price US $615.00 or you can Check price now. Dont waste your time. Buy Now only in Shenzhen Qida Laser Tech Company Store Trusted Seller Store!

The only issue that many people observe in this product is that it has a really high cost compared with other products. Individuals state that it is just couple of and also very costly individuals can afford this Flash Deal Big Stock Sale Reci W4 S4 Z4 100W Max.130W CO2 Laser Tube Wooden Case Box Packing Length 1400 Dia. 80mm for CO2 Laser Engraving Cutting Machine item. Well they are partly true concerning the cost of the item however exactly what they do not understand is that this item is made with the finest products and with the very best top quality this is why it has a greater cost compared with others.

Parameter：

Packaging：

Reci W4 S4 Z4 100W Max.130W CO2 Laser Tube Wooden Case Box Packing Length 1400 Dia. 80mm for CO2 Laser Engraving Cutting Machine

Mark & Model: W4, The product is featured as small size and good model, higher power rate compared with the laser tube of similar length and longer service time, which is suitable for laser marking, laser cutting and laser engraving.

1. Installation Requirement:

Make sure to follow the operation instruction of model W4 as shown in the illustration. The dedicated power P14 should be equipped. The positive pole of laser tube is in high voltage (the ignition voltage is 24kv). It may cause the following consequence when it is failed to follow the instruction: Arcing; the inner tube will be punctured by electricity and may cause water leakage.

2. Operation conditions:

Water cooling: using purified water; 3 to 5 liter/minute; water temperature: 10℃-40℃.

The operating environment: temperature 2-40℃; Humidity 10-60%.

The working current: test current is 30mA. Maximum working current is 30mA. The running current must be kept below 28mA. The life span can reach 10,000 hours if the current is kept below 26mA. The ammeter must be connected to the negative electrode of laser tube.

When it is working under over-high current for long term, the negative pole will appear light yellow and the life span will be shortened rapidly.

To protect dust from going into the insulation sheath, please wrap it with plastic film.

3. Working Performance:

Cutting function.

Engraving function: Very good. When the working current is 4mA and the tube is in the state of preionization, the laser can be used for high-frequency impulse engraving.

4. Key Notes:

Do not clean the exterior surface of the output widow mirror with tools such as tampon; otherwise the output power will be seriously affected. The followings are the designated methods to clean up pollution in the exterior surface of window mirror:

1) When the mirror is polluted, do not turn on the laser.

2) Blow the mirror surface sideways with an air blower.

3) Spray the pure alcohol on the mirror surface with sprayer.

4) Turn on the laser after the alcohol gets fully volatilized.

5) If the methods above dont work effectively, it is necessary to ask for the professional to use tampon with alcohol to clean the mirror surface from middle to edge. The best solution is to prevent the window from being polluted.

Attention: it is forbidden to clean the mirror with acetone.

The screws in the front and back ends of the laser tube are not allowed to be moved, otherwise the output power will be declined, even the tube will be scrapped.

Put the acryl 300mm far away from output mirror, when testing its laser spot.

5. Safety:

The laser beam is invisible light. Please wear protective glasses when debugging the laser. The positive pole is in high voltage. Pay attention to the security marks.

6. Storage and Transportation Requirement:

Pour out cooling fluid in the event of storage and transportation, and cover the output terminal with a dust-proof plastic bag. The storage environment is 2-40℃, and the requested humidity is 10-60%. Pack the laser as in the original way.

Important notes: it is requested to use adhesive tape to cement the sponge together with laser tube to prevent the tube from vertically sliding during transportation. The sponge in the side of output mirror must be 70 mm beyond it, and the sponge in the side of reflecting mirror must be 50 mm wider.

7. Tubes operated in wrong way are not guaranteed by Manufacturer.
