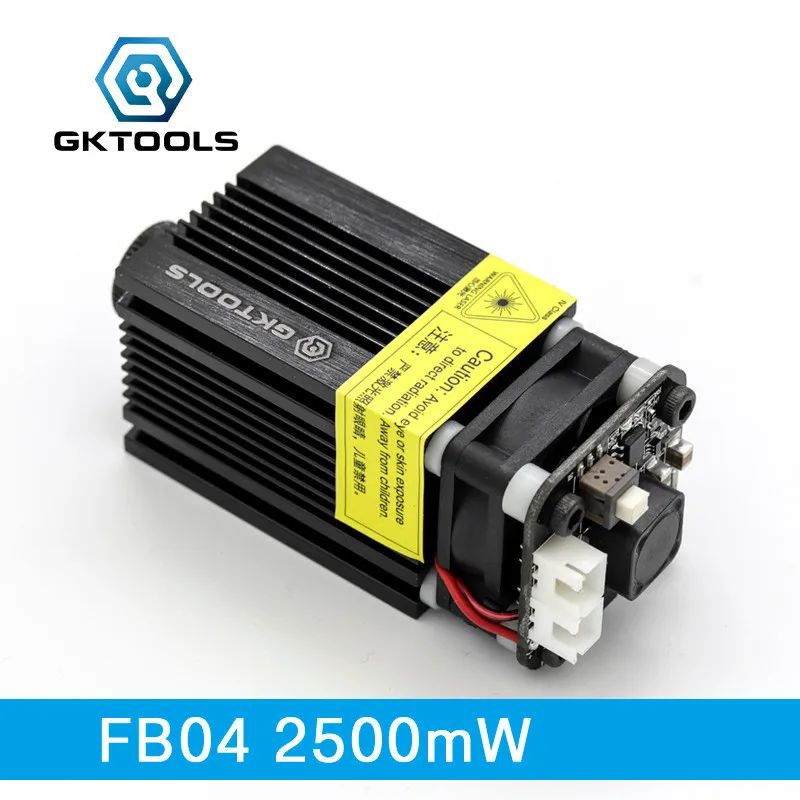

Hot Offers GKTOOLS 445nm 2500mW 12V Laser Module DIY CNC Engraver Wood Cutting Machine Support TTL/PWM Power Adjustable Focusable FB042500

Hot Offers GKTOOLS 445nm 2500mW 12V Laser Module DIY CNC Engraver Wood Cutting Machine Support TTL/PWM Power Adjustable Focusable FB042500 lamachine Rating: 4.9 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hot Offers GKTOOLS 445nm 2500mW 12V Laser Module DIY CNC Engraver Wood Cutting Machine Support TTL/PWM Power Adjustable Focusable FB042500. Get Discount Now! Only US $80.99/piece at this time. Hurry buy Now before back to normal price! Normal price US $99.99 or you can Check price now. Dont waste your time. Buy Now only in GKTOOLS GKTOOLS Store Trusted Seller Store!

Best

Excellent goods can improve the high quality of your life. Eligible to be bought. Affordable cost as well as cost-free shipping. Allow's buy prior to prices rise.

Recommended Accessories

Product Show

1.Diode used Copper Jacket. 2.Shell used Aviation Aluminum Anodizing.

1.Silkscreen logo, product model, features and production date. 2.Each module canbe traced.

1.Industrial design, heat dissipation, control integrated structure.

1.Input power: 12V DC(8-15V), Curren:2A. 2.PWM/TTL Rear-Time Control, it can adjust 0.1%-100%. 3.Weak Light Buttom, used for lasers test.

FAQ: 1. Where is the TTL port? I can only see the PWM? TTL and PWM is compatible and you can only choose one of them. It means that you can connect this modules PWM port to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V. 2. How can I connect this module to the my engraver? If you dont need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control board and leave the PWM port unconnected. User must read: 1. Laser module power is relatively large, only for industrial use, to prohibit the exposure of the eye, otherwise it will cause permanent blindness, the consequences at your own risk. 2. Do not use in flammable and gas atmospheres to avoid fire and explosion. 3. Prohibit children from exposure to this laser product. 4. Do not open the module to avoid damage.

All Materials Are Taken Down All Materials Are Taken Down Nothing is Impossible

vs vs vs Power 500mw 2500mw 5500mw 5500mw Price Cheap Cheap Expensive Expensive Wavelength 405nm 445nm 445nm 445nm Focus <0.1mm（Ultra-fine） Focusable 0.1mm（Fine） Focusable 0.1mm（Fine） Focusable 0.1mm（Fine） Focus Advantages Laser focus is extremely small. It can clearly engrave 1mm text on kraft paper and wood board. The price is cheap, the laser focus is small, and the power is big. Can cut the wood board. Carved stone, anodized products. The laser focus is small, and the power is powerful. Can easily cut the wood board. Carved stone, anodized products. The laser focus is small, and the power is powerful. Can easily cut the wood board. Carved stone, anodized products. Can marking stainless steel products. Weakness The laser power is small and it is not possible to engrave stone and anodized products. Cant cut plywood. Cannot be used for marking stainless steel products. Cannot be used for marking stainless steel products. The focus is not adjustable and needs to be used with a lifting table.

How to Engrave Transparent & White Material ★ Transparent & White material needs to be painted black with a marker.

Works Show

Different about FB04 & FB03 & FB02 FB04 FB03 FB02 Model Power Same Power Control Interface 2.54-2P2P PWM/TTL Control 2.54-3P Support PWM/TTL Control DC 5.5*2.1 Wire Line Control Board Factory outlet! If order more than 30 sets! We can print customized LOGO on the Module!
