Hot Limited 201W 24V 8.3A Professional Laser Cutting Machine CNC 3D Engraver Printer Transformer

Hot Limited 201W 24V 8.3A Professional Laser Cutting Machine CNC 3D Engraver Printer Transformer Widhiarta Aditif Rating: 5 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Hot Limited 201W 24V 8.3A Professional Laser Cutting Machine CNC 3D Engraver Printer Transformer. Price at this time US $45.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in SanWeiHouse Store Trusted Seller Store!

You require to make sure that prior to you acquire any kind of goods you have currently seen and review the client testimonials of the product. This way you can be certain that you are getting the best item that will certainly match your requirements.

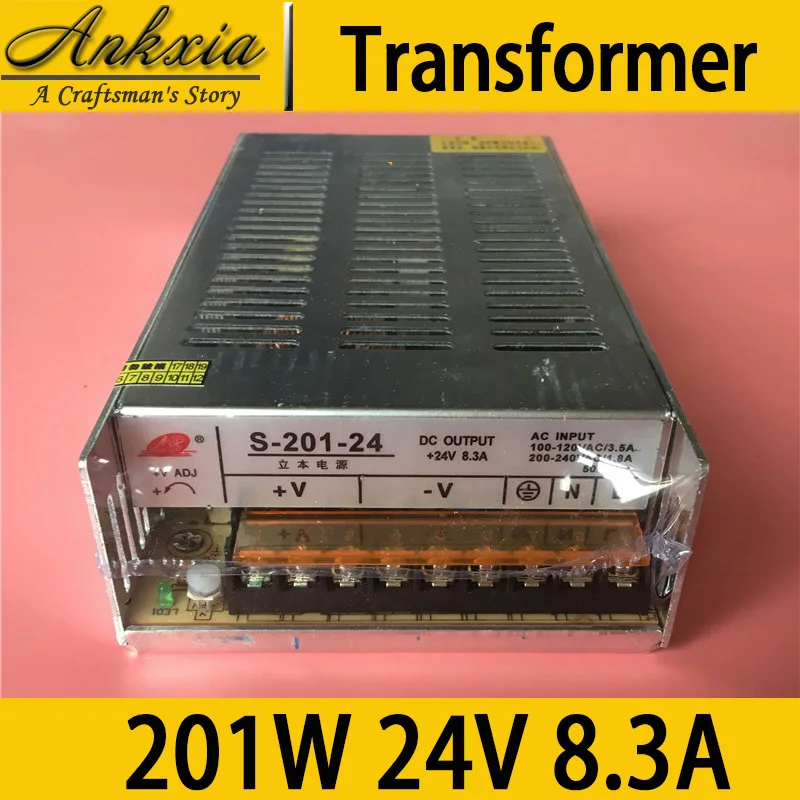

model S-201-24

Direct output voltage 24V

Output voltage tolerance ± 1%

Rated output current 8.3A

Output current range 0-8.3A

Ripple and noise 100mVp-p

Line stability ± 0.5%

Load stability ± 0.5%

DC output power of 199.2W

Efficiency 83%

DC voltage adjustable range of 20 ~ 26.4V

Input voltage range 90 ~ 132VAC / 180 ~ 264VAC selected by the switch 47 ~ 63Hz, 254 ~ 370VDC

Input current 3.6A / 115V 1.8A / 230V

Inrush current 25A / 115V 50A / 230V

Leakage current <3.5mA / 240VAC

Overload protection 105% ~ 150% Type: current limit reset: automatic recovery

Overvoltage protection 4.5 to 5.6 V 9.4 to 10.9 V 13.8 to 16.2 V 15.5 to 18.2 V 18 to 21 V 27.6 to 32.4 V 33.7 to 39.2 V 57.6 to 67.2 V

High temperature protection EPH3≥90 ℃ Output off

Temperature coefficient ± 0.03% / ℃ (0 ~ 50 ℃)

Start, rise, hold time 200ms, 100ms, 20ms

Shock resistance 10 ~ 500Hz, 2G 10min, / 1 cycle, duration 60 minutes, the axis

Pressure input and output between: 1.5KvAC input and shell: 1.5KvAC output and shell: 0.5KvAC

Isolation resistor input and output between input and housing output and housing: 500VDC / 100MΩ

Working temperature, humidity -10 ℃ ~ +60 ℃ reference output characteristics), 20% to 90% RH

Storage temperature, humidity -20 ℃ ~ +85 ℃, 10% ~ 95% RH

Dimensions 215X115X50mm

Weight 0.9kgS

Safety standard design delivery UL1950

EMC standard design indicates FCC part 15J condition class A
