Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Fantastic New Optical Power Meter Laser Light Source machine TL-503 Optical Power Meter with 10mw Visual Fault Locator. Get Discount Now! Only US $97.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $108.00 or you can Check price now. Dont waste your time. Buy Now only in GUYANG Store Trusted Seller Store!
Notice:The Visual Fault Locator have 5mw 10mw,this is 10mw version,if you need else version,please tell me.

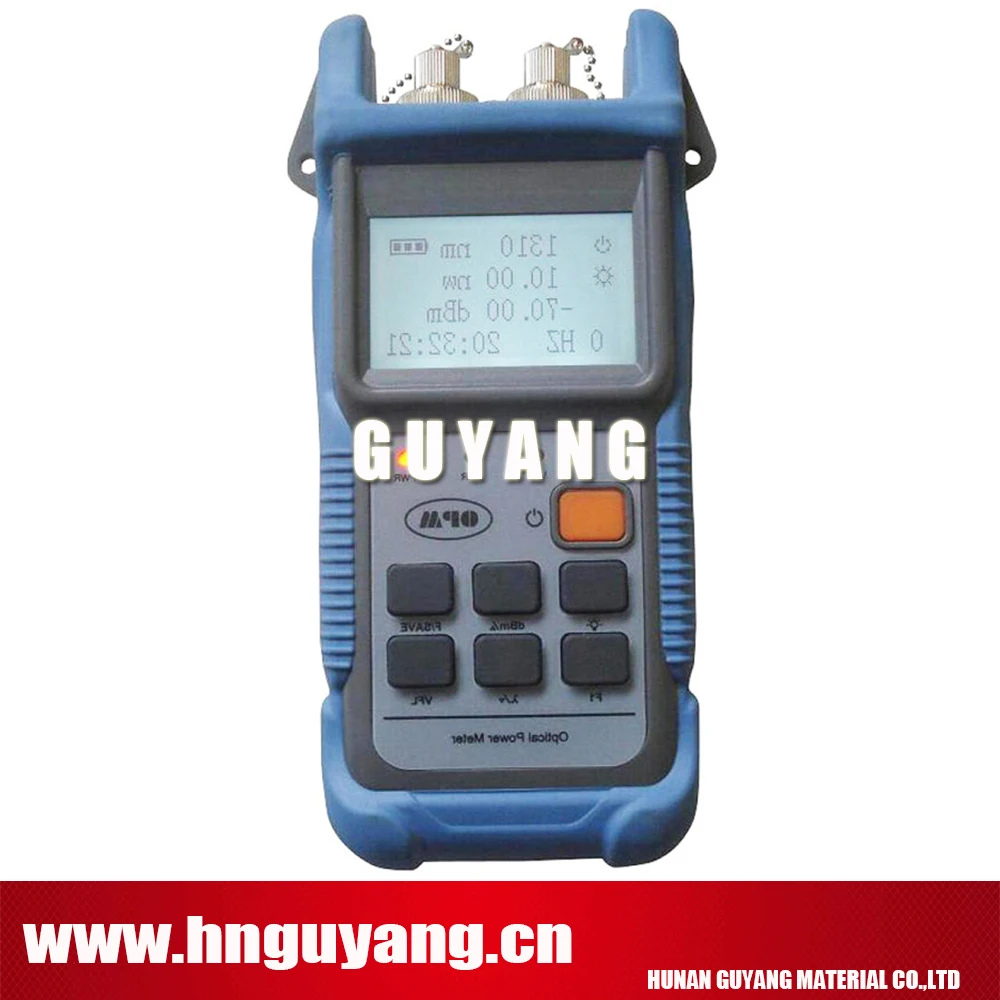

TL-503 optical power meter & visual fault locator :
A (-70 to +10 for telecommunications users), C-type (-50 to + 20 for radio and television users)
Plese tell me you need is type a or type c,this is very important
Features
Optical Power Meter, 10mw red light combined.
Multi-wavelength precision measurement.
Logarithmic or linear power measurement dBm power measurement xW, and with the screen display.
Relative power measurement dB.
With real-time clock function, can display the current time. Recording time available for the storage of data.
255 sets of test data storage.
Background management software, you can save, print the test results, you can complete the instrument parameters self-calibration.
Handheld ergonomic design, graphic dot matrix LCD display, easy to use.
LED backlight.
Optional automatic shutdown and auto-off backlight, backlight off automatically 60 seconds, 3 minutes automatic shutdown.
Fast response, no warm-up.
| Wavelength Range(nm) | 800~1600 | |
| Type of probe | InGaAs | |
| Power Measurement Range(dBm) | -70~+10 | -50~+20 |
| Uncertainty | ±5% | |
| Standard wavelength (nm) | 850,980,1300,1310,1490,1550 | |
| Display Resolution | Linear Display: 0.1% of the number display: 0.01dBm | |
| Red light section | ||
| Wavelength | 650nm±10nm | |
| Light source | FP-LD laser | |
| Output Power | 1mW, 3mW, 5mW, 10mW can choose | |
| Connector | 2.5mm FC / PC universal adapter | |
| Operating Mode | CW or modulated light continuous light | |
| Modulation frequency | 2Hz | |
| Working Temperature (°C) | -20~+70 | |
| Storage Temperature(°C) | -30~+80 | |
| Automatic shutdown time (min) | 3 | |
| Battery operating time (h) | 260 (backlight off) | |
| size(mm) | 175*79*46 | |
| power supply | High-capacity rechargeable lithium battery, 3.7V 1600mAH. | |
| weight(g) | 260 | |
