Terrific Special Optical Power Meter Laser Light Source machine TL-560 Optical Power Meter with 30mw Visual Fault Locator 800~1700nm

Terrific Special Optical Power Meter Laser Light Source machine TL-560 Optical Power Meter with 30mw Visual Fault Locator 800~1700nm Widhiarta Aditif Rating: 5 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Terrific Special Optical Power Meter Laser Light Source machine TL-560 Optical Power Meter with 30mw Visual Fault Locator 800~1700nm. Get Discount Now! Only US $81.00/piece at this time. Hurry buy Now before back to normal price! Normal price US $90.00 or you can Check price now. Dont waste your time. Buy Now only in GUYANG Store Trusted Seller Store!

Notice:The Visual Fault Locator have 1mw,10mw 20mw,30mw ,this is 30mw version,if you need else version,please tell me.

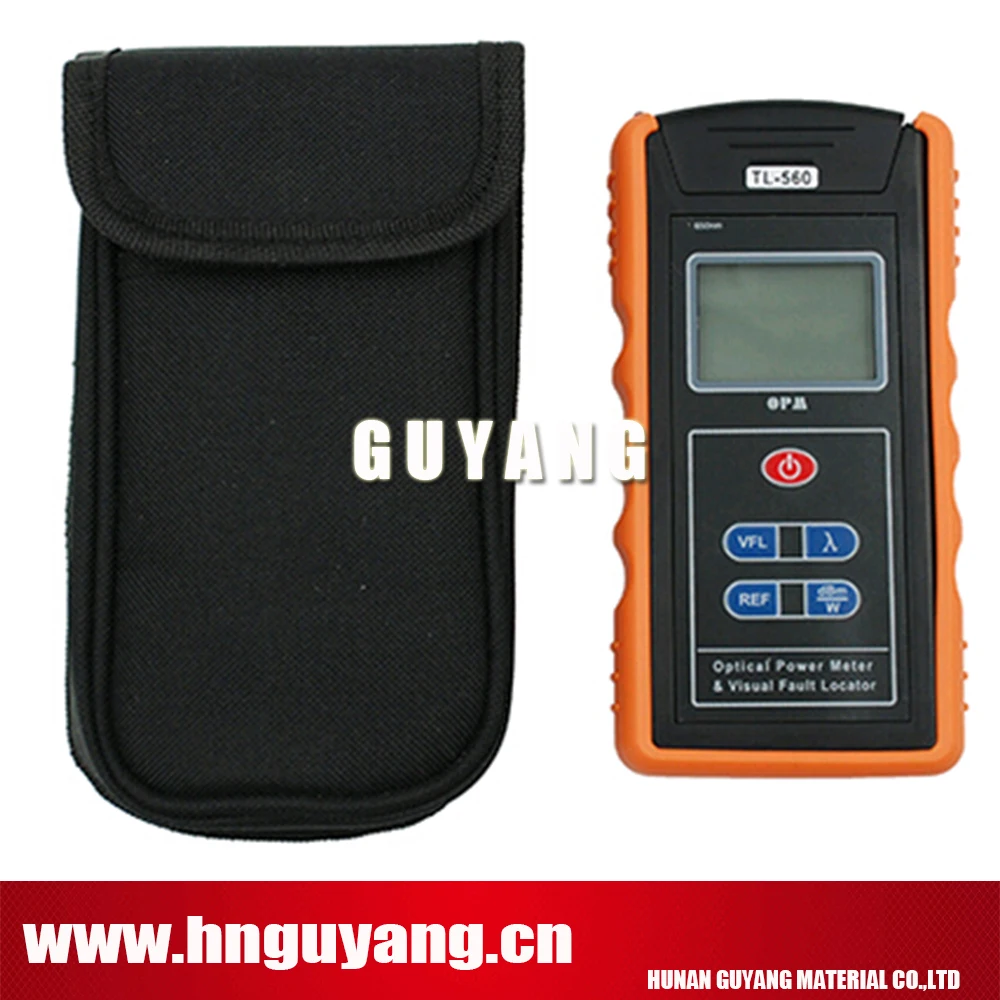

TL-560 optical power meter & visual fault locator :

A (-70 to + 8 for telecommunications users), C-type (-50 to + 26 for radio and television users)

Plese tell me you need is type a or type c,this is very important

Product Features- Users can self-calibration (without PC), factory calibration values can be restored;- Automatic shutdown function can be set;- You can set the reference value, REF relative measurement;- Real-time display battery charge;- Steady red light output (constant power control circuit)- The use of interchangeable optical port interfaces with FC, SC chief, measurement is more accurate;- Two AA batteries, low power design, long time;- Rubber shell, increase protection performance, suitable for field work Product description TL-560 Series portable optical multimeter, also known as optical multimeter, a power meter, red light into one of the combination, both PM and red light can be used simultaneously, it can also be used alone.Wherein the optical power module has 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm 6 wavelength calibration points. Can display linear and nonlinear optical power, both for the direct measurement of optical power can also be used for relative measurement of optical link loss.650nm visible red laser light source module provides outputs for single-mode or multimode fiber measurements, they emit red light emitted from the optical fiber can be bent more serious position and cover at a breakpoint or bare fiber, but also from bad connections The joints shot, therefore, to identify light jumper, patch panels, patch panels, fault joints.The instrument has a rugged, small size, light weight, portable and low power consumption, large LCD display, make measurements faster and more convenient. Cable television systems, optical communications and other fields of construction and maintenance of essential equipment.Power measurement range dBm A: -70 ~ + 10 / C: -50 ~ + 26 Wavelength measurement range nm800 ~ 1700 Wavelength Calibration nm850,1300,1310,1490,1550,1625 Accuracy <± 3% (-10dBm, 22 ) Display Resolution dB linear display: 0.1%, logarithmic display: 0.01dBm Operating temperature -10 ~ + 50 Storage temperature -20 ~ + 70 Relative humidity 90% (+ 30 ), non-condensing Optical interface FC, SC (ST LC optional) Two power 5 AAA batteries Battery continuous operation time h120 hours (optical power works only) Automatic shutdown time min10 Weight 180g Dimensions mm158 × 82 × 29 Red (Function Option) Wavelength 650nm, power 1-5/10/20/30/50mw optional output 0HZ, 2HZ

Specifications

Measurement Range(dBm)	-70~+10	-50~+26
Calibration Wavelength(nm)	800~1700
Detector type	InGaAs
Uncertainty (dB)	<±3%(-10dBm,22℃)
Display resolution(dB)	0.1% / 0.01dBm
Operation Temperature(oC)	-10~+50
Storage Temperature(oC)	-20~+70
Working Humidity	90%(+30℃),RH
Connector	FC,SC(ST LC optional)
Alkaline battery	3AAA 1.5V orLi battery (9V)
Battery Operating time (h)	120h
Weight(g)	180
Dimension(mm)	158 × 82 × 29
