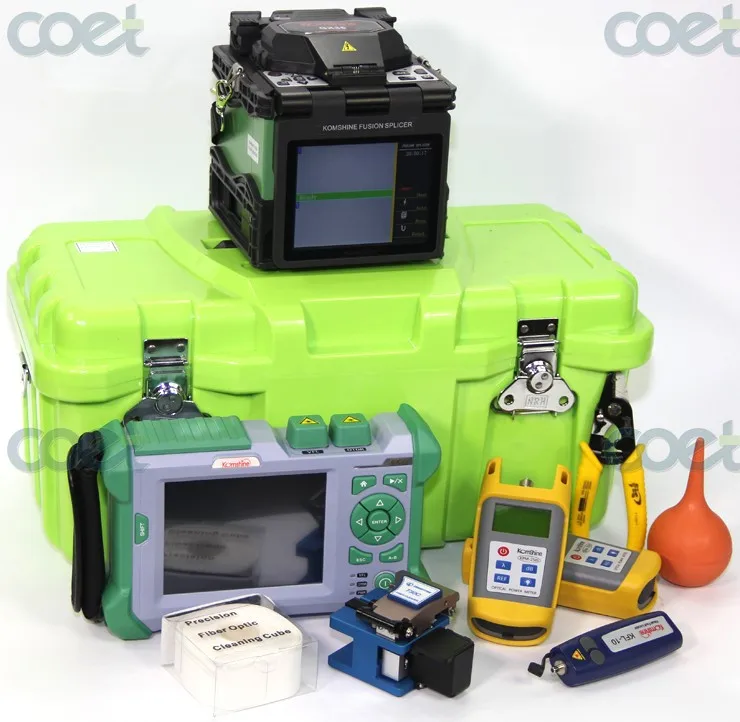

Terrific Limited KOMSHINE GX36 FTTH Fusion Splicer Kit w/ Fiber Cleaver+QX50-S SM 1310/1550 nm 30dB OTDR +Optic Power Meter+Laser Source+VFL

Terrific Limited KOMSHINE GX36 FTTH Fusion Splicer Kit w/ Fiber Cleaver+QX50-S SM 1310/1550 nm 30dB OTDR +Optic Power Meter+Laser Source+VFL Rating: 4.3 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Terrific Limited KOMSHINE GX36 FTTH Fusion Splicer Kit w/ Fiber Cleaver+QX50-S SM 1310/1550 nm 30dB OTDR +Optic Power Meter+Laser Source+VFL. Price at this time US $2469.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Best

KomShine GX36Fusion Splicer Kit w/ KFC-33 Fiber Cleaver+Q50-S

SM 1310/1550nm 32/30dB OTDR + Optical Power Meter + Optical

LightSource + Visual Fault Locator

*All the items come with 1-Year-Warranty*

*All the items come fully Calibrated*

1. Komshine GX36 Fusion Splicer Kit including:

• GX36 Fusion Splicer

• High Precision Sumotomo FC-6S Cleaver

• High Precision Fiber Stripper

• Battery Built-in

• AC Adapter/battery charger

• Power Cable

• Spare Electrodes

• Carrying Case

• Cooling Tray

• Fusion Splicer Protection Sleeves 500pcs

• 1 Year Warranty

Specifications:

Applicable Fibers

SM / MM / DS / NZDS / BIF & UBIF (G.657)

Average Loss

0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)

Return Loss

>60dB

Operation Methods

Auto, Manual

Typical Splicing Time

9s

Typical Heating Time

28s

Fiber Alignment

Core Alignment / Clad Alignment

Fiber Diameter

Cladding: 80~150 um / Coating: 100~1000 um

Cutting Length

8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um)

Magnification

X or Y: 310X / X + Y: 155X

LCD Display

High performance 3.7 inch. TFT LCD / 640x480 resolution

Tension Test

2N

Applicable Sleeve

60mm / 40mm / 20mm or etc.

Battery Capacity

Average:200 cycles (Splicing and Heating)

Charging time: 3 hours

Battery Life Cycle

300~500 charge / discharge cycles

Electrode Life Cycle

Typical 3000 times

Power

Removable battery : 11.1V 8800mAH

AC/DC adapter: input:AC100-240V

output:DC13.5V/5.0A

Working Environments

Temp: -10C~+50C

Humidity: 95%RH

Elevation: 0~5000M

Dimension

L×W×H=135×160×150(mm)

Weight

1.8 KGs (without battery), 2.3 KGs (with battery)

2.KOMSHINE QX50-S SM 1310/1550nm 32/30dB OTDR With FC/UPC+SC/UPC+LC/UPC Connectors:

* Come with FC+SC+LC Adaptors *

* English + Spanish Languages *

* Test Results Analysis softeware *

Features

  • Applicable fiber: Networks with PLC Splitters
  • <3m extra-short event dead zon
  • Wavelength: 850/1300nm
  • Up to 32/30dB High Dynamic Range
  • Distance Range: 4,8,16,32,64,128,256km
  • Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
  • 640×480, 6.5 inch TFT-LCD (touch screen)
  • USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
  • Memory capacity >800 traces
  • Built-in lithium battery with high capacity for over 8 hours of operating life
  • Display: Color LCD
  • One year Warranty
  • Specifications:

    Model = QX50-S
    Wavelength(nm) = 1310/1550
    Dynamic range(dB) = 32/30
    Pulse width (ns) = 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
    Display 6.5 inch TFT LCD touch screen
    Event blind zone (m) = 3
    Attenuation blind zone (m) = 13
    Linearity (dB/dB) = ±0.05 dB/ dB
    Loss threshold (dB) = 0.05
    Loss resolution ratio (dB) = 0.01
    Sampling resolution ratio (m) = 0.125 to 8
    Sampling point = 32k
    Distance uncertainty (m) = ±(1 m + 5×10-5× distance + sampling interval)
    Distance scope (km) = 0.3 to180
    Memory capacity of trace = SD Card (4G), > 10000 pieces
    Duration of measurement = Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
    Optical interface = FC/UPC+SC/UPC+LC/UPC
    Data interface = USB interface, SD card interface
    Visual Fault Locator = Available
    Power supply = Lithium battery; continuing working duration ≥ 8 hours
    Warranty period = 12 months

    Standard Package:

    QX50 OTDR

    FC+SC+LC UPC Connectors

    SM Fiber Optic Patch Cord FC-SC 1M

    Testing & Calibration Report

    AC/DC adapter

    Quality certification

    Trace analyzing software(CD)

    Internal Battery

    User Manual

    Carrying Case
