Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer 2018 Gift Intelligent 3D printer high precision laser engraver robot arm. Get Discount Now! Only US $1994.91/piece at this time. Hurry buy Now before back to normal price! Normal price US $2099.90 or you can Check price now. Dont waste your time. Buy Now only in Yadar Milling Store Trusted Seller Store!
Wonderful 2018 Gift Intelligent 3D printer high precision laser engraver robot arm item can boost the quality of your life. Qualified to be purchased. Economical rate as well as free shipping. Allow's buy Promo 2018 Gift Intelligent 3D printer high precision laser engraver robot arm before rates rise.
No question, this is an actual item that provides lots of conveniences along with profitable for you. Equally as you will get a fortune, this Special 2018 Gift Intelligent 3D printer high precision laser engraver robot arm product is able to give an automobile that should be very interesting for you. In selecting this Flash Deal 2018 Gift Intelligent 3D printer high precision laser engraver robot arm goods, you could do numerous factors to consider that exist in the brochure. The goods brochure you obtain is certainly offer a recommendation for those of you who want to discover the item you desire.

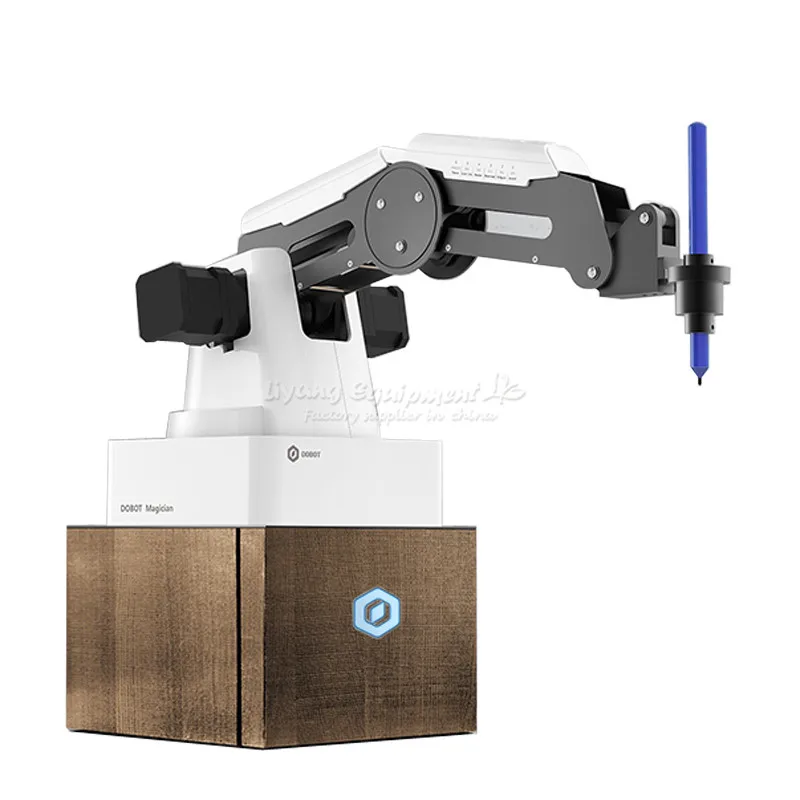

Intelligent 3D printer high precision laser engraver robot armlaser engraving mechanical arm
Parameters | |
Number of axles | 4 |
Payload | 500g |
Maximum stretch distance | 320mm |
Repeatability precision | 0.2mm |
CI | USB(USB-to-UART)/ WIFI/ Bluetooth |
Supply Voltage | 100V-240V, 50/ 60 Hz |
Power input | 12V / 7A DC |
Power | 60W Max |
Working TEMP | -10℃-60℃ |
Axis motion parameter | ||
Axis | Working range | Maximum speed (work load 200g) |
Axis 1 base | -135°to +135° | 320°/ s |
Axis 2 big arm | 0°to +85° | 320°/ s |
Axis 3 small arm | -10°to +95° | 320°/ s |
Axis 4 rotation | +90°to -90 | 480°/ s |
Physical characteristics | |
Weight | 4KG |
Base size | 158mm*158mm |
Material | Aluminum Alloy 6061, ABS Engineering Plastic |
Control box | Dobot Integrated Controller |
Rotbot Installation | Desktop |
Packing specification (L * w * h) | 330mm*224mm*307mm |
Software applications | |
Software | DobotStudio, Repetier Host GrblaController3.6, Graphic Programing |
SDK(software development kit) | Communication protocol, Dobot Library |
Extended I/O interface | 1.I/O*10 (for analog signal input or pulse output) |
2.Controllable 12V voltage output port *4 | |
3.CI(UART, Reset 12V.3.3V and two I/O included) | |
4.Extended stepper motor interface *2 |
End-of-arm tooling | ||
3D printing | Size(L*W*H) | 150MM*150MM*150MM |
Material | PLA | |
Resolution | 0.1MM | |
Laser | Power Consumption | 500mw |
Type | 405nm(Blue laser) | |
Power | 12V, TTL trigger | |
Pen holder | Pen Diameter | 10mm |
Sucker | Sucker Diameter | 20mm |
Pressure | -35Kpa | |
Claw | Range | 40mm |
Drive mode | Air-operated | |
Gripping ability | 8N |
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).2018 Gift Intelligent 3D printer high precision laser engraver robot arm
