Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Hurry! Promo Nema 23 Wantai Stepper Motor 425oz-in,3.0A,4 Axis CNC Engraver, Miller, Laser Machine 3D Reprap Printer of wantaimotor. Get Discount Now! Only US $357.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $380.00 or you can Check price now. Dont waste your time. Buy Now only in wantai motor's store Trusted Seller Store!

One of these products is really extremely understanding of your requirements for this special product. The item brochure you obtain is absolutely provide a recommendation for those of you who desire to locate the product you want. As a goods that assists your needs to obtain convenience, of course this goods is very interesting to obtain.

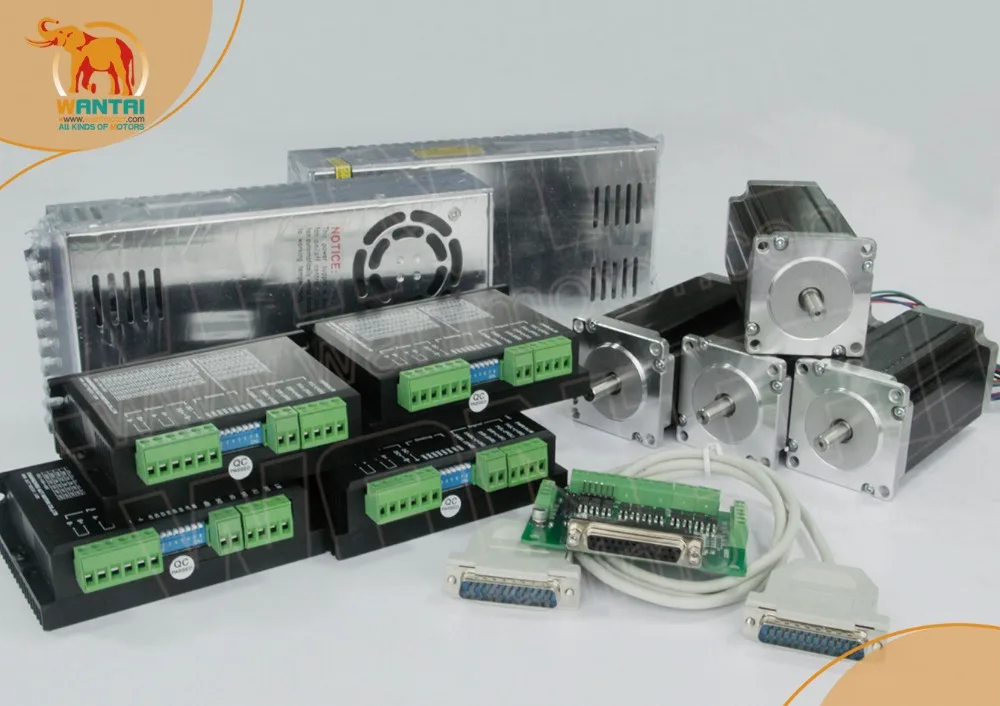

This item includes:

4 PCS Nema 23 Stepper Motor dual shafts with 425oz-in holding torque,

4 PCS Stepper Driver with 4.2A DQ542MA,

2 PC Power Supply for 350W,36VDC,

1 PC DB25 Breakout Board & 1 Cable

1, Stepper Motor

Technical Specifications

Part No.: WT57STH115-3004B

Frame Size: NEMA23

Step Angle:1.8 degree

Voltage: 6.3VDC

Current: 3 A/phase

Resistance:2.1Ohm/phase

Inductance:9mH/phase

Holding torque:30Kg-cm 425oz-in

Rotor inertia:810 g-cm2

Detent torque: 0.89 kg-cm

Number of wire leads: 4

Weight: 1.55KG

Length: 115mm

2, Stepper Motor Driver with 4.2A Current, 128 Microstep

DQ542MA is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DQ542MA run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, Computer embroider machine, packing machines and so on.

3, Power Supply-350W,36VDC,9.5A,

4, Breakout Board

• Built in DB25 male connector.
• DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
• DB25 Input Pin: P10,P11,P12,P13,P15.
• DB25 GND Pin: P18-P25.
• Power supply: +5V DC.
• Built in C-class Optical-coupler.
• High quality with Surface-mount Tech.
