Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Terrific Gift KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber Cleaver+QX50-M 850/1300nm OTDR+ Power Meter+Laser Source+VFL. Price at this time US $3590.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Inexpensive rate as well as totally free shipping. Allow's buy Limited Terrific Gift KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber Cleaver+QX50-M 850/1300nm OTDR+ Power Meter+Laser Source+VFL before prices increase.
We all likewise give free shipping worldwide for certain Discount Terrific Gift KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber Cleaver+QX50-M 850/1300nm OTDR+ Power Meter+Laser Source+VFL goods. Buy now before the purchase price goes up! Get special price for Discount Terrific Gift KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber Cleaver+QX50-M 850/1300nm OTDR+ Power Meter+Laser Source+VFL goods only for the first 10 potential buyers at this point.

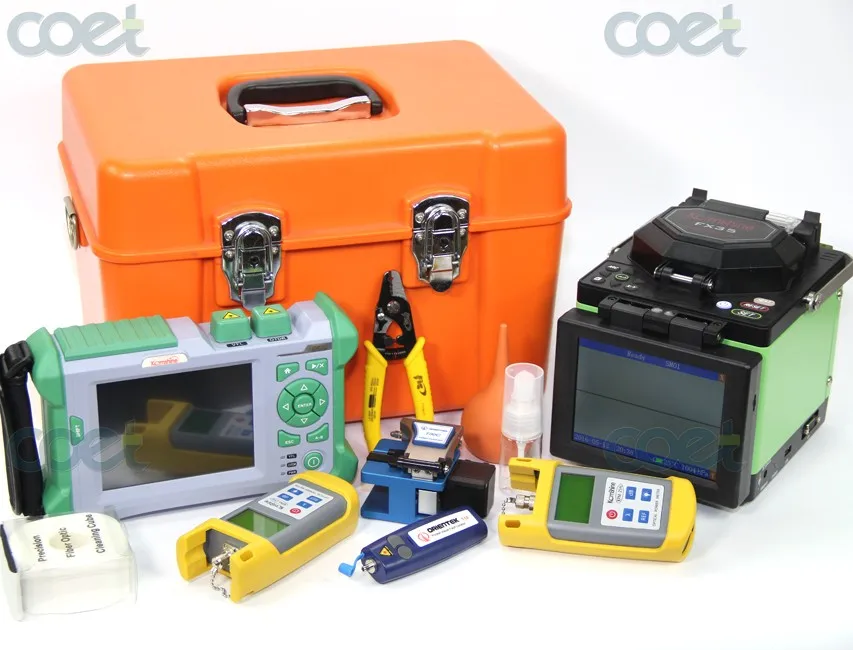

You should ensure that prior to you acquire any type of product you have already seen and check out the client testimonials of the item initially. This way you could be certain that you are obtaining the best goods that will certainly suit your demands.KOMSHINE FX35 Fusion Splicer Kit w/ Cleaver + QX50-M
PON 850/1300nm 21/19 dBOTDR + Optical
Power Meter + Optical Light Source+Visual Fault Locator
Specifications:
| Applicable fibers | SM MM DS NZDS |
| Fiber diameter | Cladding diameter:80-150μm; Coating diameter:100-1000μm |
| Fiber coun | Single |
| Fiber cleaved length | 12-16mm (Coating diameter:250μm) |
| Actual average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Typical splicing time | Typical 9 sec (standard SM fiber) |
| Return loss | >60dB |
| Splicing mode | Auto Calibrate Normal Special |
| Fiber aligning method | Meticulous,Core,Clad,Manual |
| Splicing program | 53 (templet), 40(user) |
| Tube heating program | 9 (templet),24(user) |
| Tube typical heating time | Typical 25 sec |
| Protection sleeve length | 60mm, 40mm |
| Storage of splice result | 4000 results, 20 parameter per result |
| Fiber image magnification | 300X (X or Y view),150X (X and Y view) |
| Battery capacity | Typical 160 cycles (splice/tube heat with inner Li-battery) |
| Monitor | 5.7 inch color LCD monitor |
| Tension test | 2N |
| Electrode life | 4000 |
| Terminal | USB |
| Power supply | AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V |
| Operating condition | 0-5000m above sea level, -10-50OC Max wind velocity of 15m/s |
| Dimension | 150mm(L)×150mm(W)×150mm(H) |
| Weight | 2.55Kg excluding battery,3.05Kg including battery |
2. KOMSHINE QX50-M 850/1300nm 21/19dB OTDR with FC/UPC+SC/UPC+LC/UPC Connectors:
Features:
- Applicable fiber: Networks with PLC Splitters
- <3m extra-short event dead zon
- Wavelength: 850/1300nm
- Up to 21/19dB High Dynamic Range
- Distance Range: 4,8,16,32,64,128,256km
- Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
- 640×480, 6.5 inch TFT-LCD (touch screen)
- USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
- Memory capacity >800 traces
- Built-in lithium battery with high capacity for over 8 hours of operating life
- Display: Color LCD
- One year Warranty
- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty NOTICE:1. Buyer is responsible for the custom duty and local import taxes;
2. Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after
placing the order.
3. Ordering more than 10 sets: contact me to get a huge discount!!!
Komshine SM Single Mode OTDR QX50-SOTDR Optical Fiber Ranger JW3304AKOMSHINE QX-50-P1 PON OTDR Tester MachineKOMSHINE GX36 Optical Fiber Fusion SplicerKOMSHINE FX35 Digital Single Fiber Fusion Splicer Shippment
1. Orders processed timely after the payment verification.
2. To help buyers reduce or avoid customs tax, we will write "Gift or Sample" If needed, we can also help declare low value on invoice for you to pay lower tax in your country ,if you have any suggestion, please leave a note in order.
3. Customs Tax should be paid by buyer, Seller can not support and Customs Tax.
Payment
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Terrific Gift KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber Cleaver+QX50-M 850/1300nm OTDR+ Power Meter+Laser Source+VFL
