Big Clearance KOMSHINE FX35 FTTH Fusion Splicer Kit w/ Fiber Cleaver+SM 1310/1550nm OTDR+Power Meter+Laser Source+Visual Fault Locator/VFL

Big Clearance KOMSHINE FX35 FTTH Fusion Splicer Kit w/ Fiber Cleaver+SM 1310/1550nm OTDR+Power Meter+Laser Source+Visual Fault Locator/VFL Rating: 2.9 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Big Clearance KOMSHINE FX35 FTTH Fusion Splicer Kit w/ Fiber Cleaver+SM 1310/1550nm OTDR+Power Meter+Laser Source+Visual Fault Locator/VFL. Price at this time US $2285.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Perfect

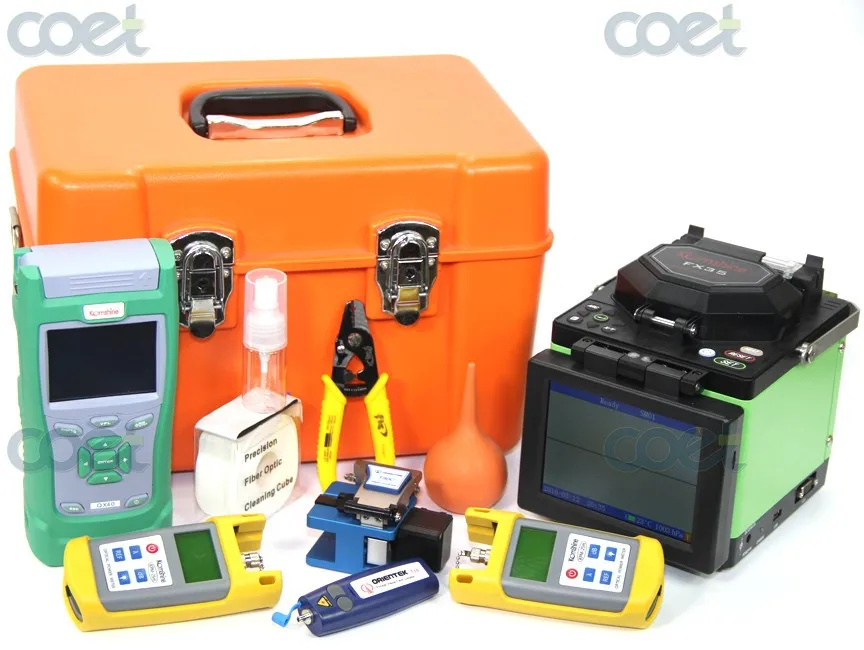

KOMSHINE FX35 Fusion Splicer Kit w/ Cleaver + KOMSHINE QX40 Dual Wavelength 1310/1550nm 30/28dB OTDR + Optical Power Meter + Optical Light Source + Visual Fault Locator

Ships in 24Hrs via TNT/DHL/Fedex, Get it Fast



Specifications:

Applicable fibers

SM MM DS NZDS

Fiber diameter

Cladding diameter:80-150μm; Coating diameter:100-1000μm

Fiber count

Single

Fiber cleaved length

12-16mm (Coating diameter:250μm)

Actual average splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Typical splicing time

Typical 9 sec (standard SM fiber)

Return loss

>60dB

Splicing mode

Auto Calibrate Normal Special

Fiber aligning method

Meticulous,Core,Clad,Manual

Splicing program

53 (templet), 40(user)

Tube heating program

9 (templet),24(user)

Tube typical heating time

Typical 25 sec

Protection sleeve length

60mm, 40mm

Storage of splice result

4000 results, 20 parameter per result

Fiber image magnification

300X (X or Y view),150X (X and Y view)

Battery capacity

Typical 160 cycles (splice/tube heat with inner Li-battery)

Monitor

5.7 inch color LCD monitor

Tension test

2N

Electrode life

4000

Terminal

USB

Power supply

AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V

Operating condition

0-5000m above sea level, -10-50OC Max wind velocity of 15m/s

Dimension

150mm(L)×150mm(W)×150mm(H)

Weight

2.55Kg excluding battery,3.05Kg including battery

2: KOMSHINE QX40 Dual Wavelength 1310/1550nm 30/28dB SM OTDR With FC/UPC + SC/UPC + LC/UPC Connectors INCLUDES:

Specifications:

Model = QX40
Wavelength(nm) = 1310/1550
Dynamic range(dB) = 32/30
Pulse width (ns) = 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Display 3.5 inch TFT LCD touch screen
Event blind zone (m) = 8
Attenuation blind zone (m) = 10
Linearity (dB/dB) = ±0.05 dB/ dB
Loss threshold (dB) = 0.05
Loss resolution ratio (dB) = 0.01
Sampling resolution ratio (m) = 0.125 to 8
Sampling point = 32k
Distance uncertainty (m) = ±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km) = 0.3 to180
Memory capacity of trace = SD Card (4G), > 10000 pieces
Duration of measurement = Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Optical interface = FC/UPC+SC/UPC+LC/UPC
Data interface = USB interface, SD card interface
Visual Fault Locator = Available
Power supply = Lithium battery; continuing working duration ≥ 8 hours
Warranty period = 12 months

3: Mini Optical Power Meter + Mini Light Source + Visual Fault Locator INCLUDES:

- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty

NOTICE:

1. Buyer is responsible for the custom duty and local import taxes;

2. Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after

placing the order.

3. Ordering more than 10 sets: contact me to get a huge discount!!! Komshine SM Single Mode OTDR QX50-S OTDR Optical Fiber Ranger JW3304A KOMSHINE QX-50-P1 PON OTDR Tester Machine KOMSHINE GX36 Optical Fiber Fusion Splicer KOMSHINE FX35 Digital Single Fiber Fusion Splicer

Shippment

1. Orders processed timely after the payment verification.

2. To help buyers reduce or avoid customs tax, we will write "Gift or Sample" If needed, we can also help declare low value on invoice for you to pay lower tax in your country ,if you have any suggestion, please leave a note in order.

3. Customs Tax should be paid by buyer, Seller can not support and Customs Tax.

Payment

1. We accept Alipay, Western Union and T/T. All major credit cards are accepted through secure payment processor ESCROW.

2. If you cant checkout time immediately after auction close, please wait for a few minutes and retry.

Feedback

We appreciate 5-stars positive feedback, its good for our longterm business,More importantly, the true evaluation could help many buyers and enhance the credibility of honest seller.

If you have any question please contact us, we are happy to answer all your questions and offer answer within 24 hours

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
Big Clearance KOMSHINE FX35 FTTH Fusion Splicer Kit w/ Fiber Cleaver+SM 1310/1550nm OTDR+Power Meter+Laser Source+Visual Fault Locator/VFL
