Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Super Limited TL-503 Optical Power Meter & Visual Fault Locator Fiber Optic Tool -70~+10dBm VFL 10 mW Handheld Optical Laser Light Source. Price at this time US $88.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shenzhen city Hivi communication equipment Co. Ltd. Trusted Seller Store!
Terrific goods can enhance the quality of your life. Eligible to be acquired. Economical cost and also cost-free shipping. Allow's purchase New Super Limited TL-503 Optical Power Meter & Visual Fault Locator Fiber Optic Tool -70~+10dBm VFL 10 mW Handheld Optical Laser Light Source before prices increase.

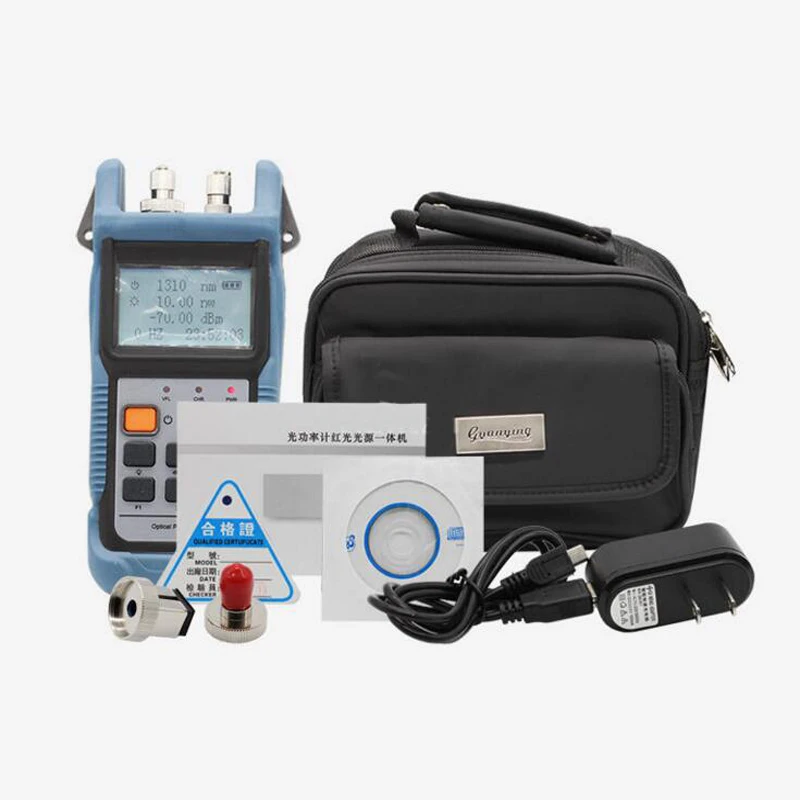

TL-503 Optical Power Meter & Visual Fault Locator Fiber Optic Tool -70~+10dBm VFL 10 mW Handheld Optical Laser Light Source
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much
Product Attributes
Features
Optical Power Meter, 10mw red light combined.
Multi-wavelength precision measurement.
Logarithmic or linear power measurement dBm power measurement xW, and with the screen display.
Relative power measurement dB.
With real-time clock function, can display the current time. Recording time available for the storage of data.
255 sets of test data storage.
Background management software, you can save, print the test results, you can complete the instrument parameters self-calibration.
Handheld ergonomic design, graphic dot matrix LCD display, easy to use.
LED backlight.
Optional automatic shutdown and auto-off backlight, backlight off automatically 60 seconds, 3 minutes automatic shutdown.
Fast response, no warm-up.
| Wavelength Range(nm) | 800~1600 | |
| Type of probe | InGaAs | |
| Power Measurement Range(dBm) | -70~+10 | -50~+20 |
| Uncertainty | ±5% | |
| Standard wavelength (nm) | 850,980,1300,1310,1490,1550 | |
| Display Resolution | Linear Display: 0.1% of the number display: 0.01dBm | |
| Red light section | ||
| Wavelength | 650nm±10nm | |
| Light source | FP-LD laser | |
| Output Power | 1mW, 3mW, 5mW, 10mW can choose | |
| Connector | 2.5mm FC / PC universal adapter | |
| Operating Mode | CW or modulated light continuous light | |
| Modulation frequency | 2Hz | |
| Working Temperature (°C) | -20~+70 | |
| Storage Temperature(°C) | -30~+80 | |
| Automatic shutdown time (min) | 3 | |
| Battery operating time (h) | 260 (backlight off) | |
| size(mm) | 175*79*46 | |
| power supply | High-capacity rechargeable lithium battery, 3.7V 1600mAH. | |
| weight(g) | 260 | |
1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2. If you cant checkout time immediately after auction close, please wait for a few minutes and retry.
3) If you cant checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.
1.WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference only. 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. 6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! 7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery. 8.DeliveryTime:
If your cargo weighs up to 20KG or above, or you need larger quantity, please contact us or email to us, we will provide you new packing specifications, then try our best to save some transport costs for you, and so that the product price can be of some benefit to you!
We are a large manufacturing enterprise groups in China, we sell through Alibaba, there is only purpose ,it is to better promote our products,all our company products are shipped direct from the factory, please contact us , hope to establish long-term friendly and mutual cooperation relations between each other !
We provide 6-12 months warranty. If the item is defective, please notify us within 3 days of delivery. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods. Items returned after 15 days of delivery are only eligible for repair. The buyer is responsible for all shipping cost. When buying, it means the buyer have given tacit consent to the policy. If further details, please feel free to contact us, we will work with you to reach win-win.
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. It is impossible to address issues if we do not know about them!
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Super Limited TL-503 Optical Power Meter & Visual Fault Locator Fiber Optic Tool -70~+10dBm VFL 10 mW Handheld Optical Laser Light Source
